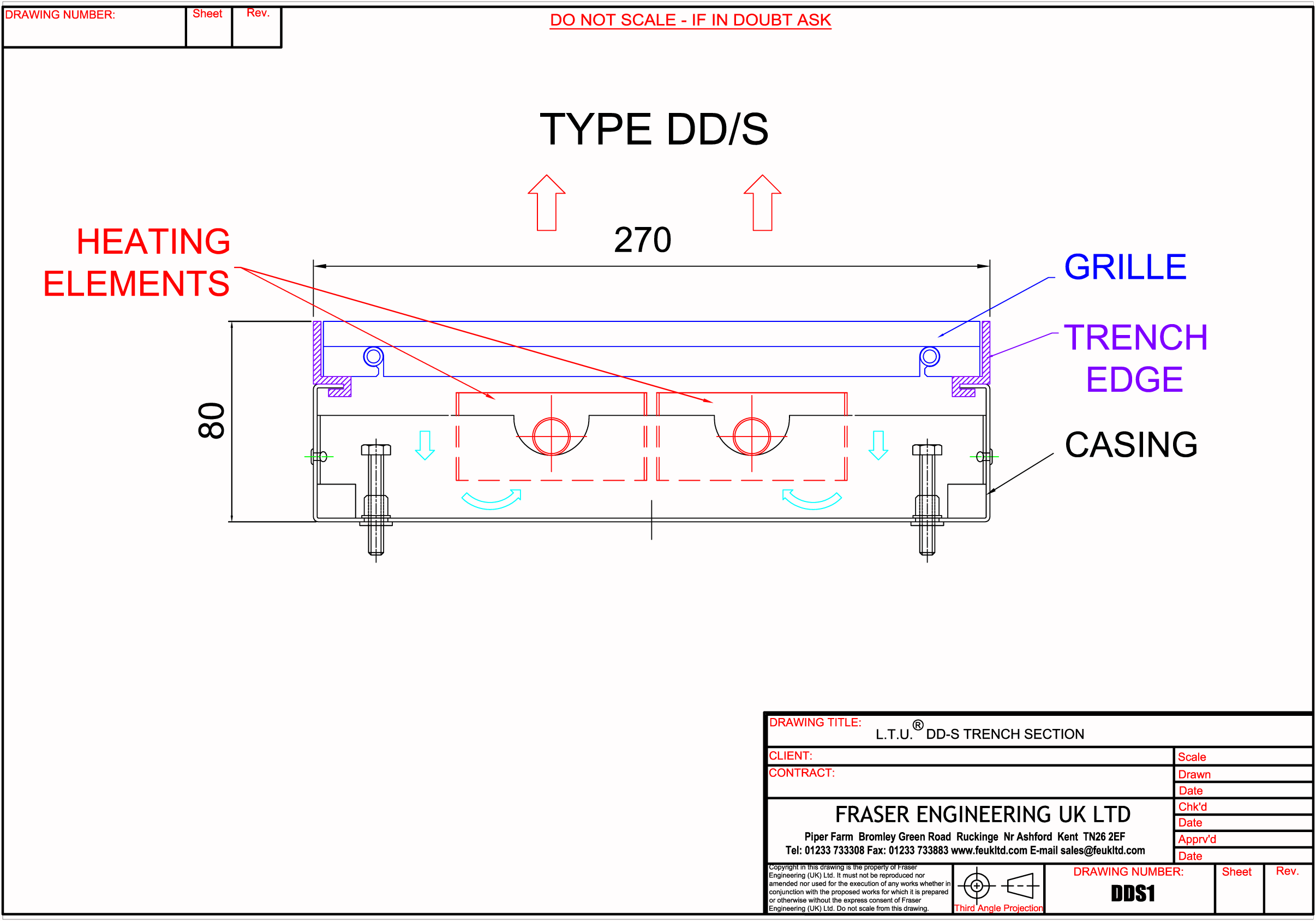

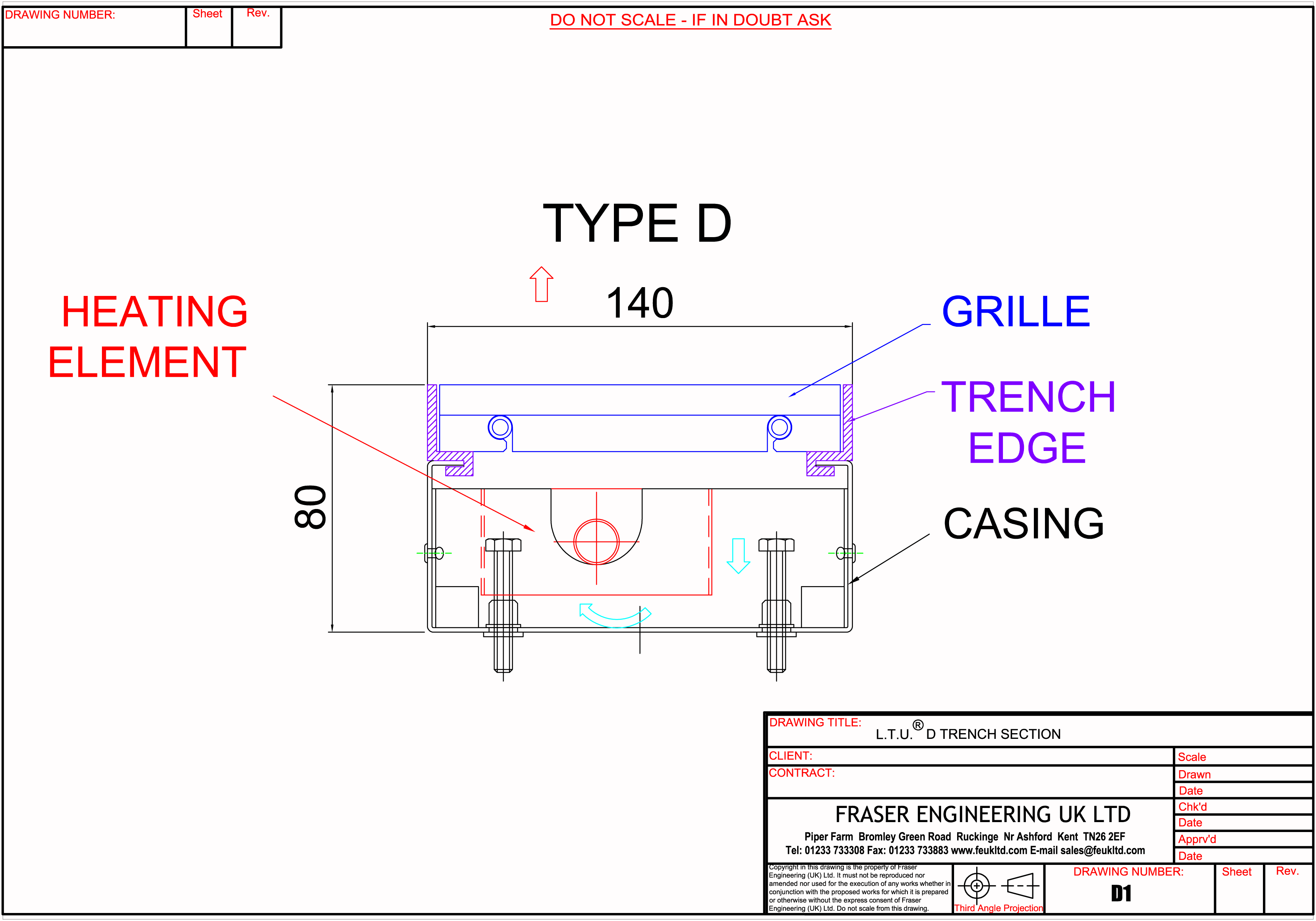

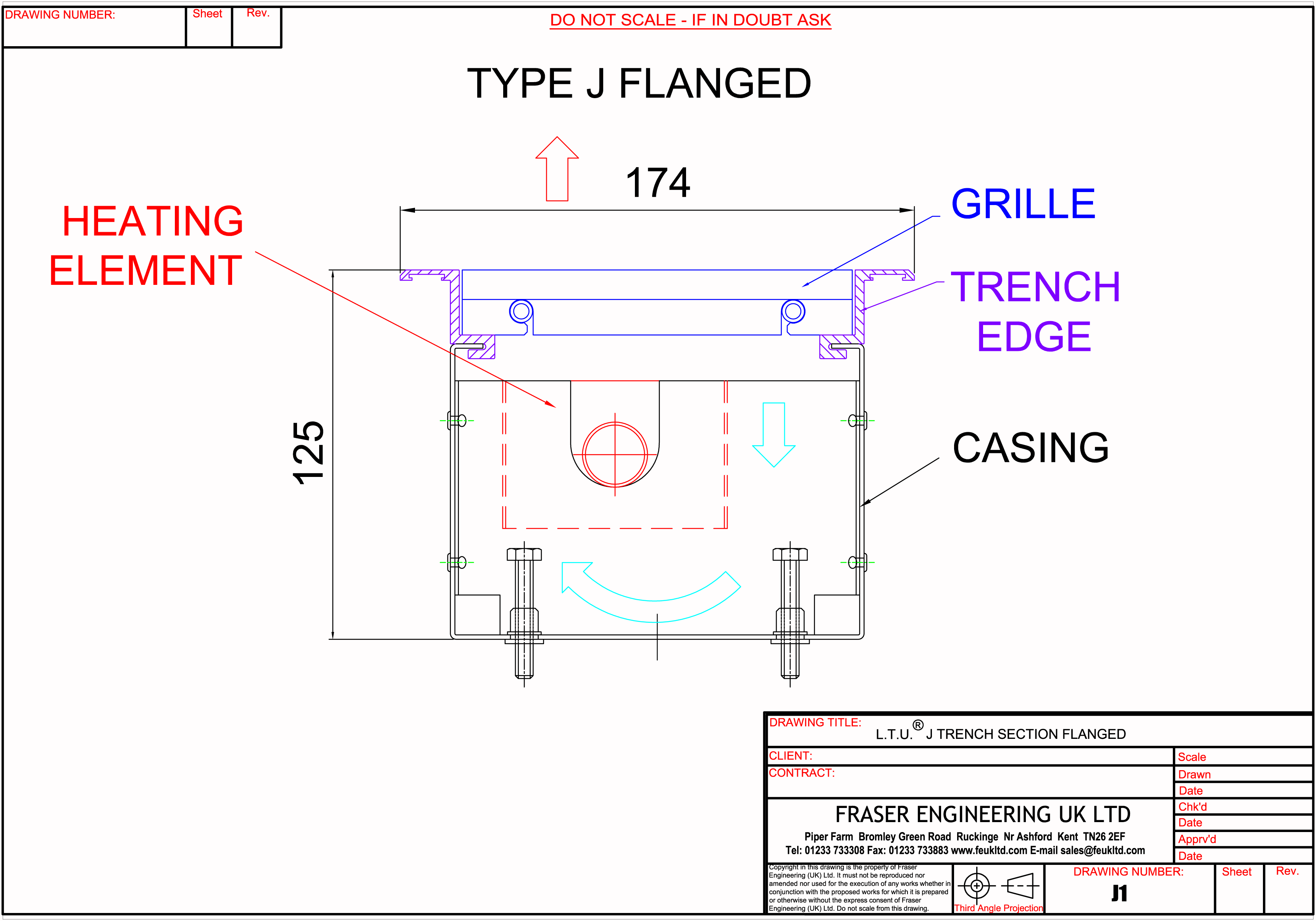

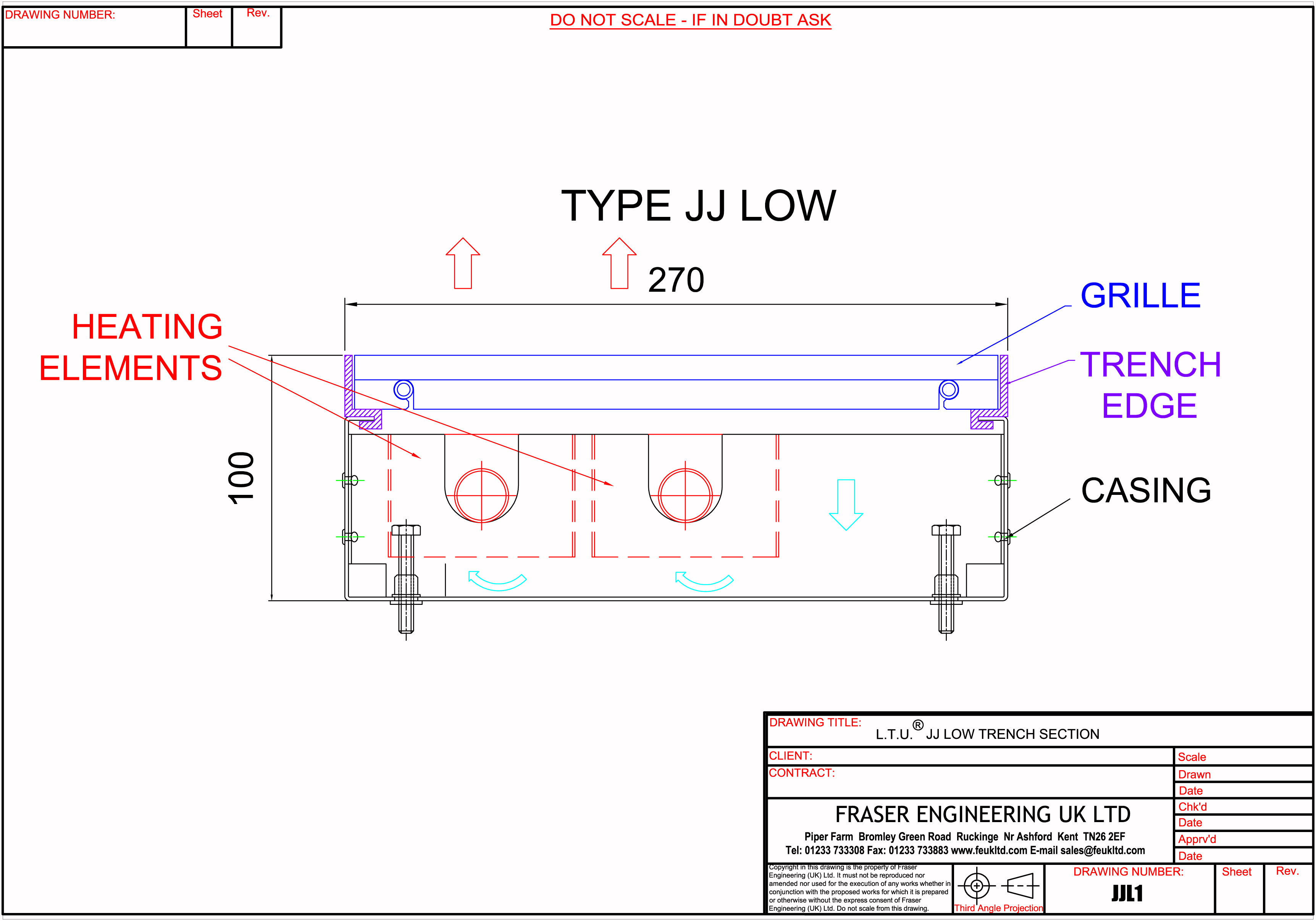

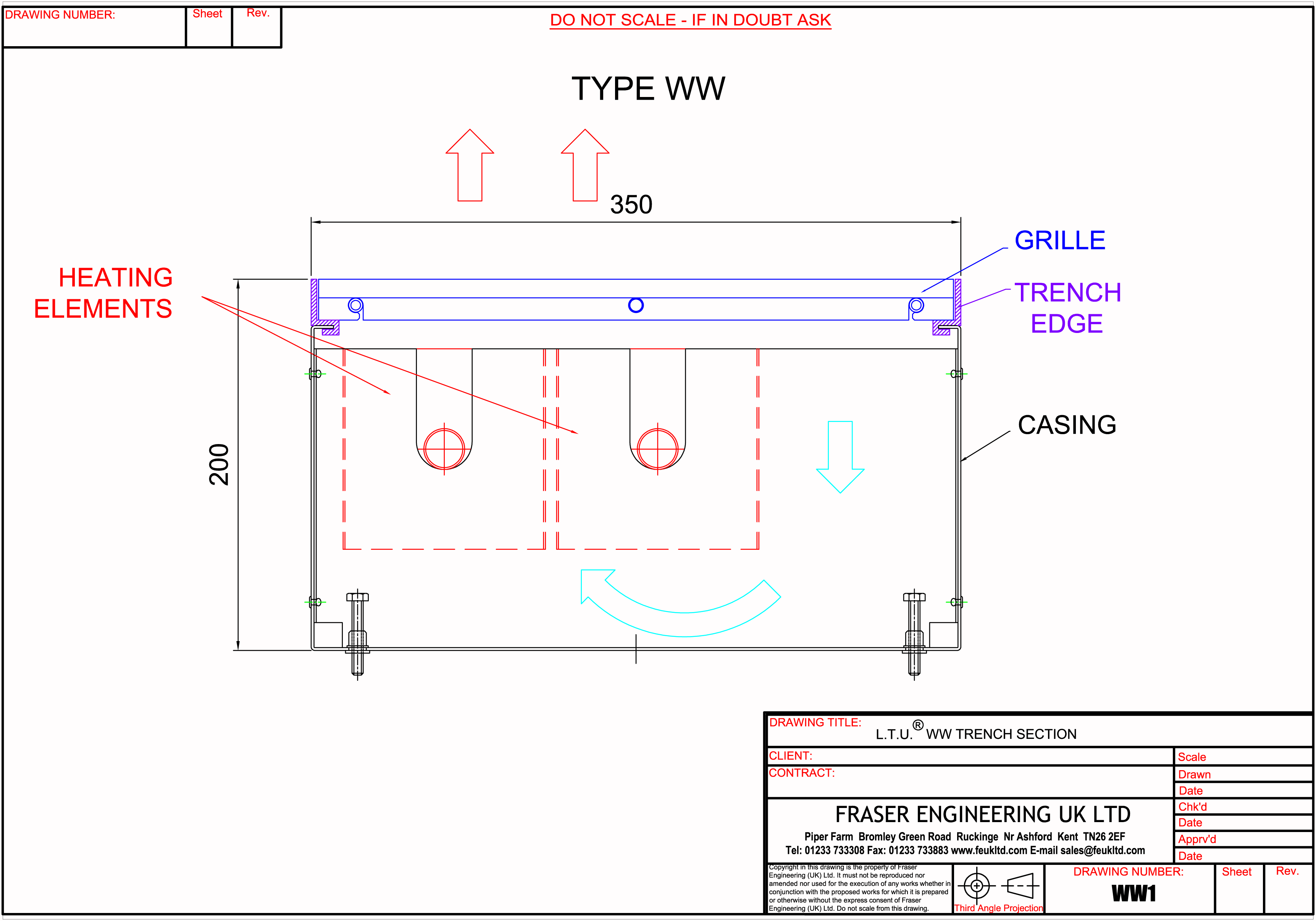

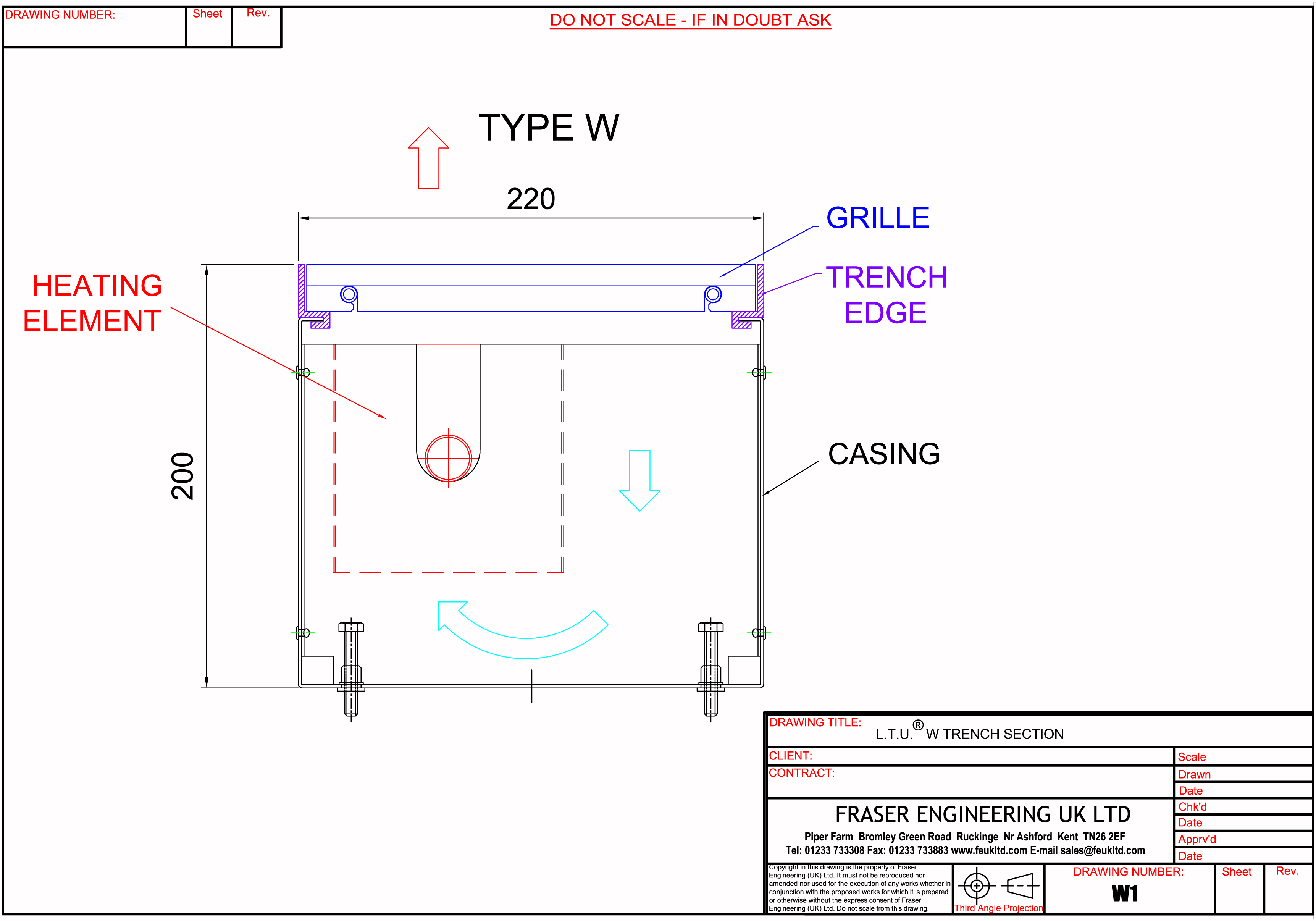

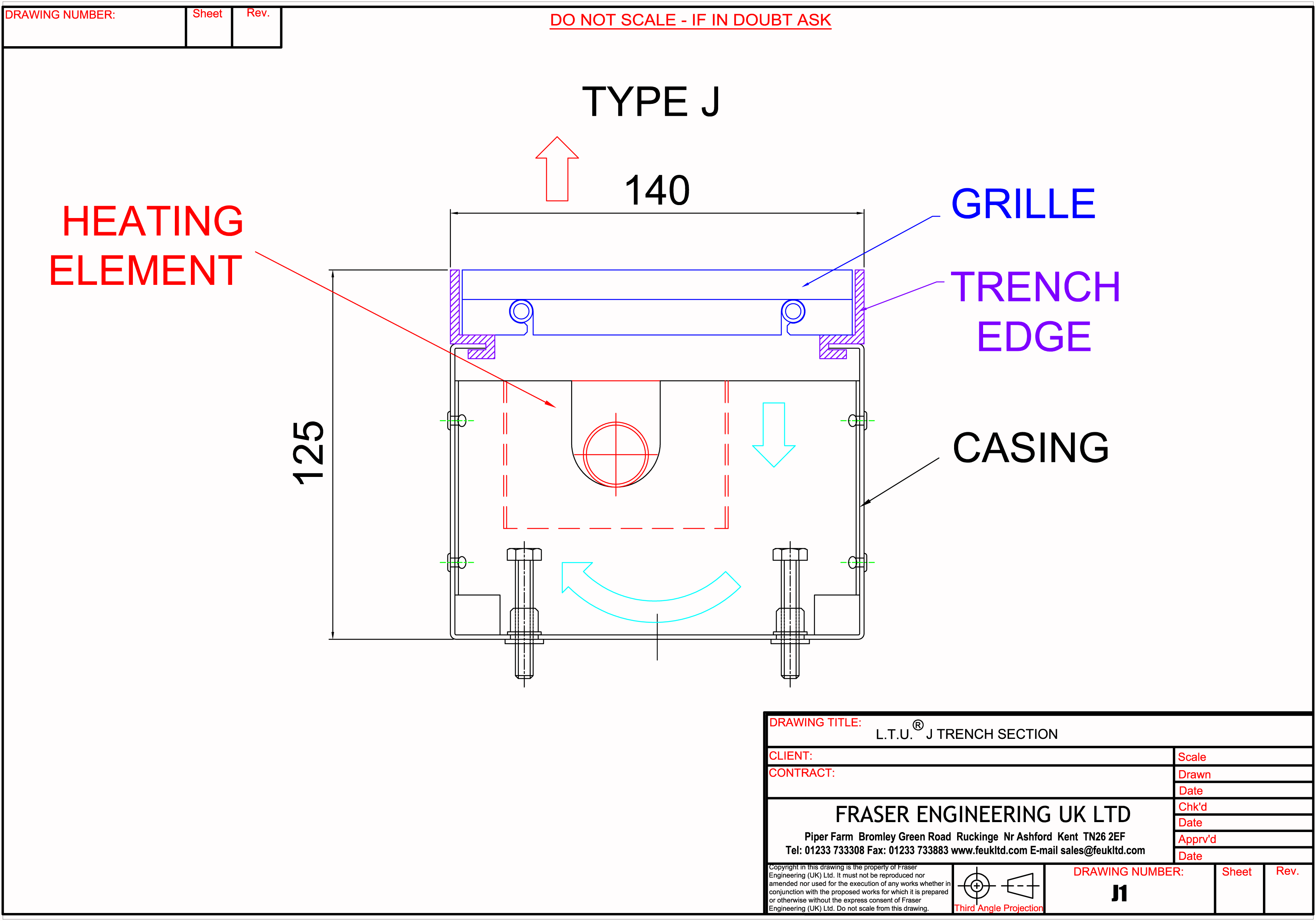

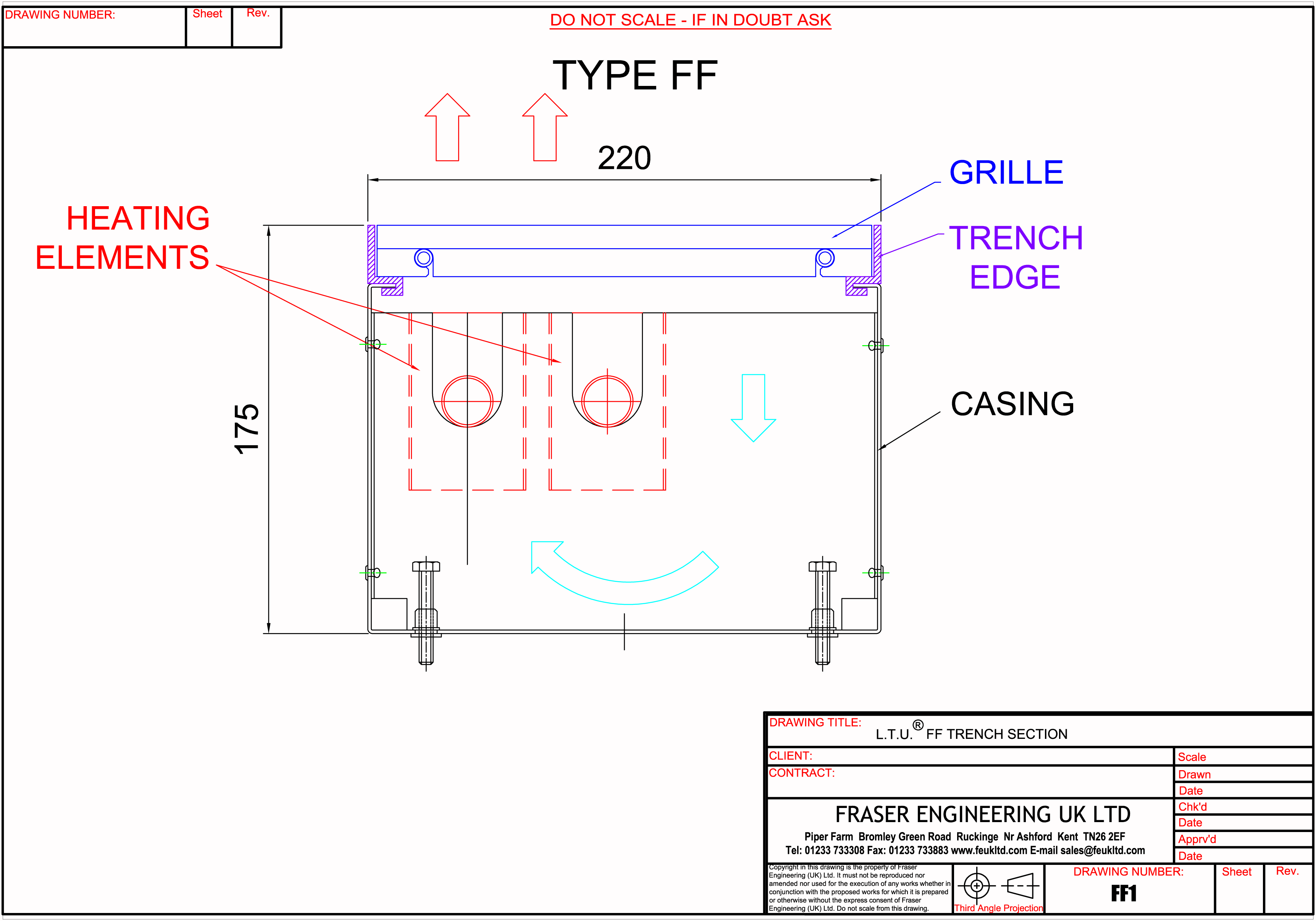

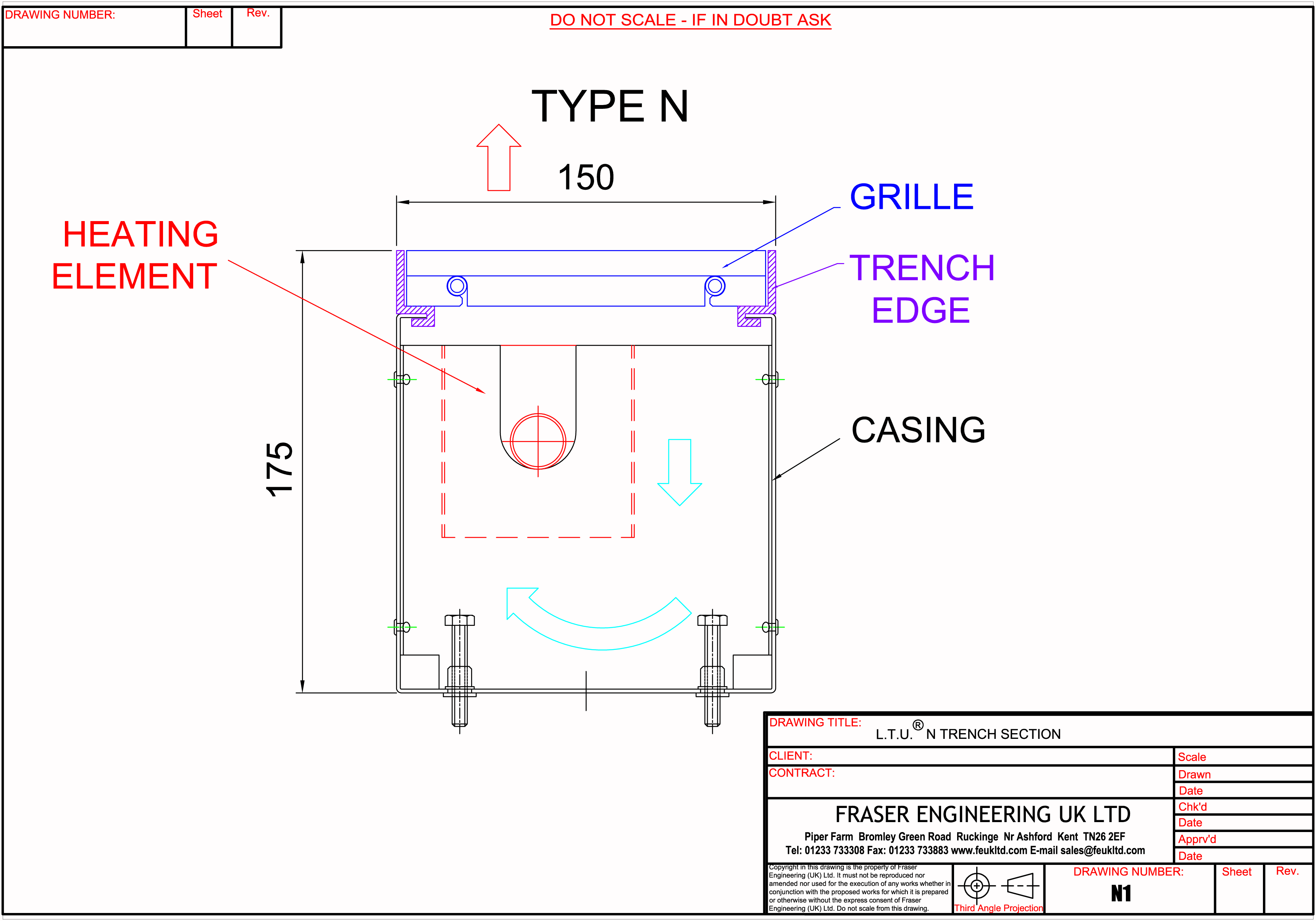

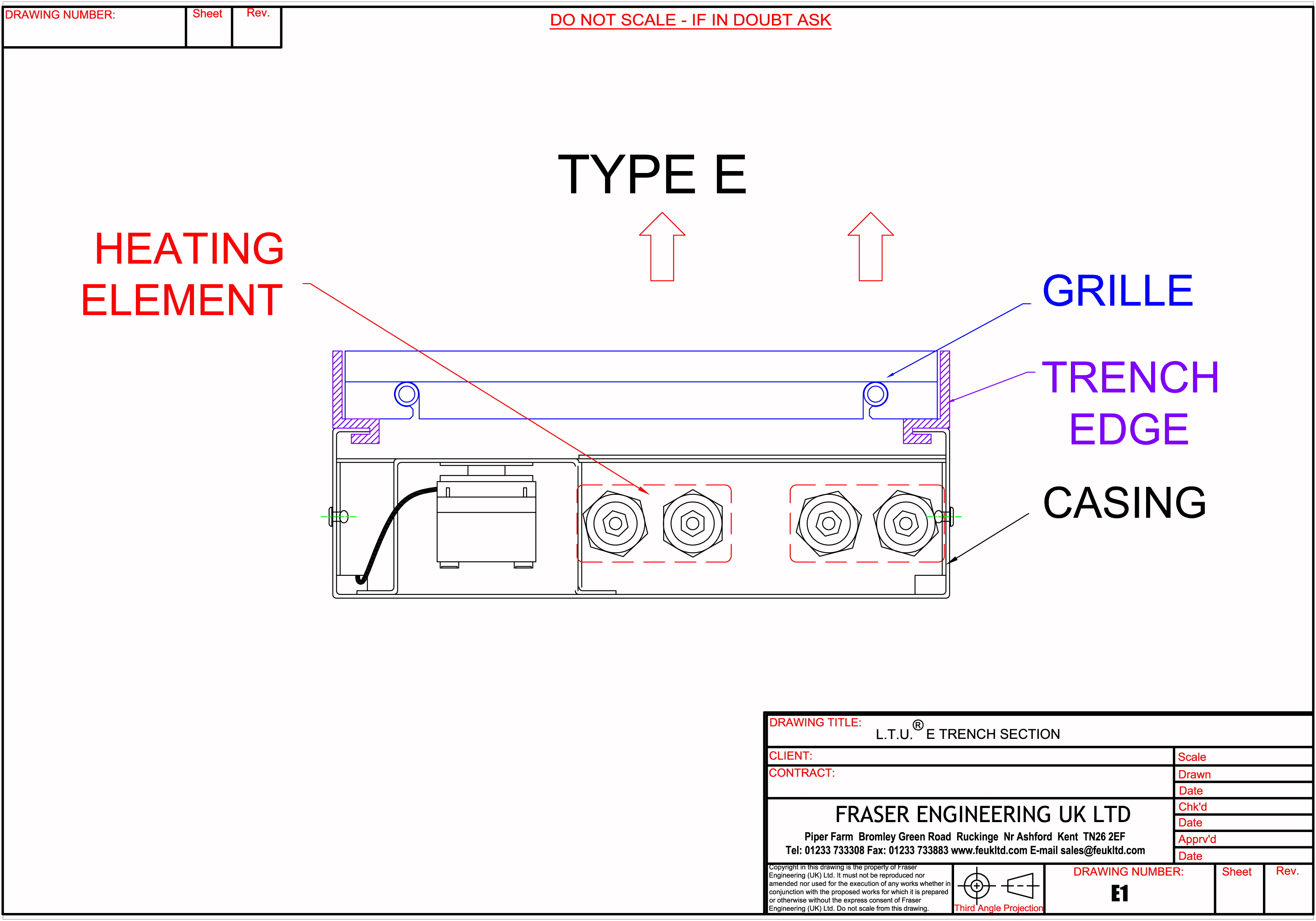

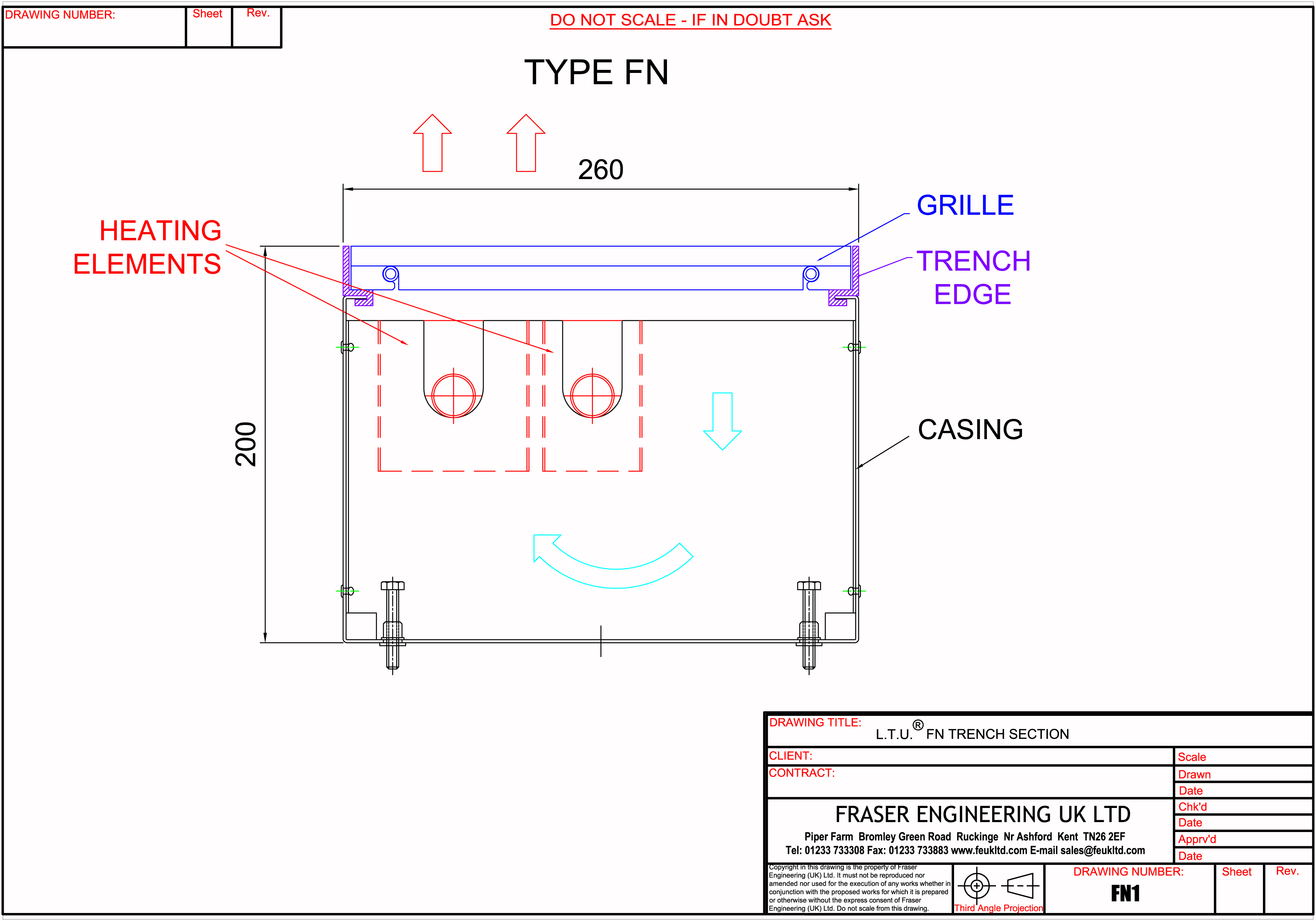

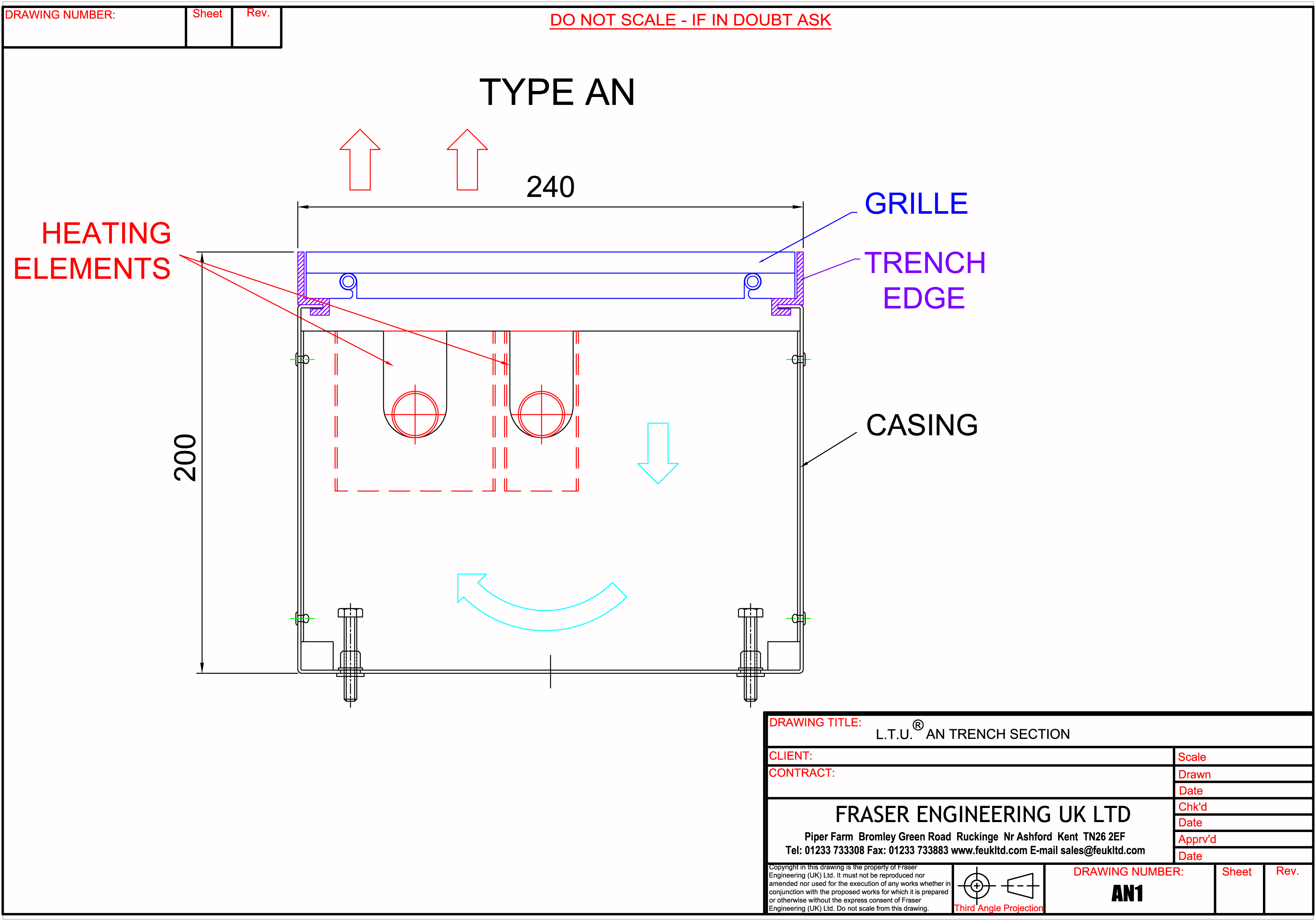

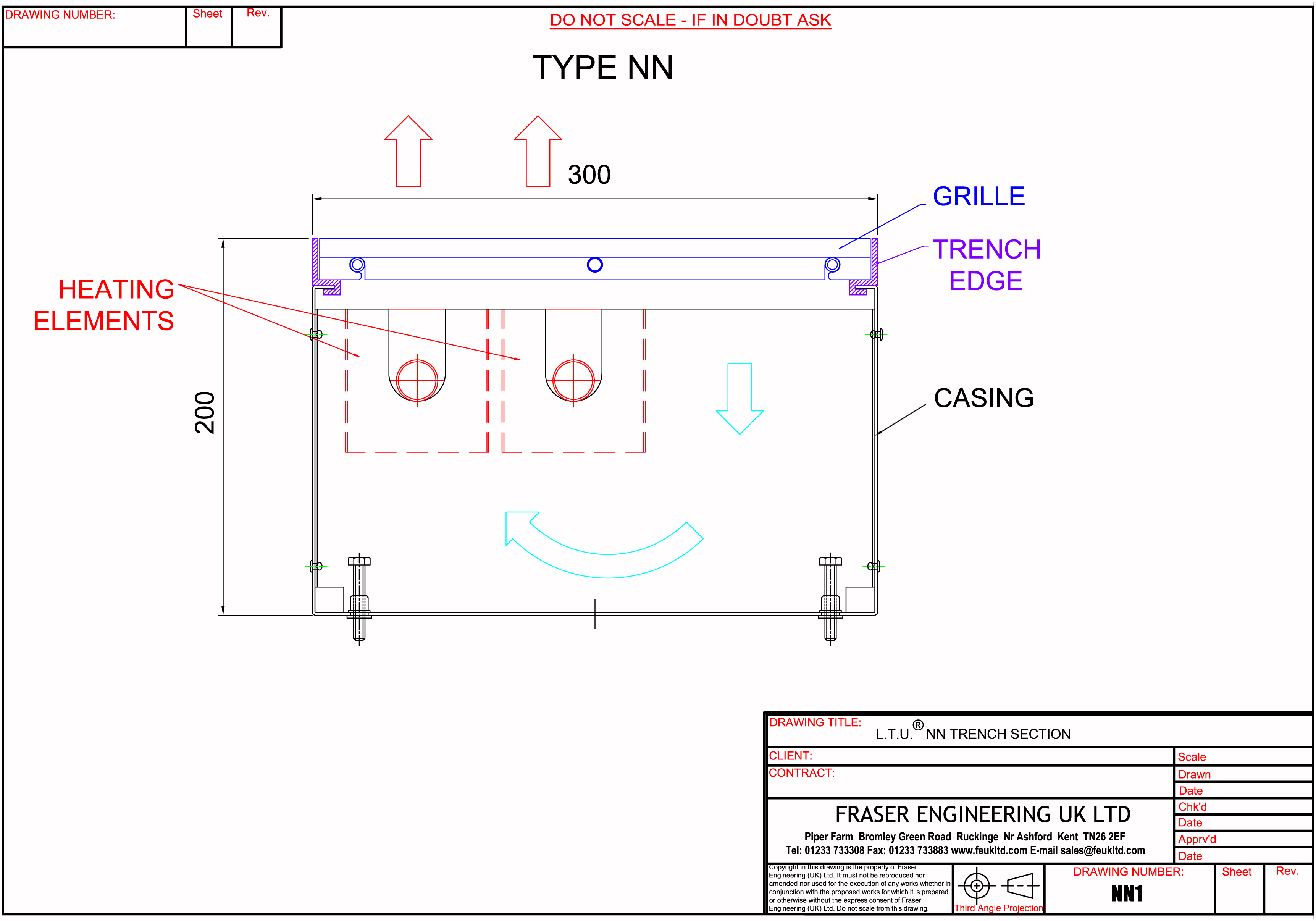

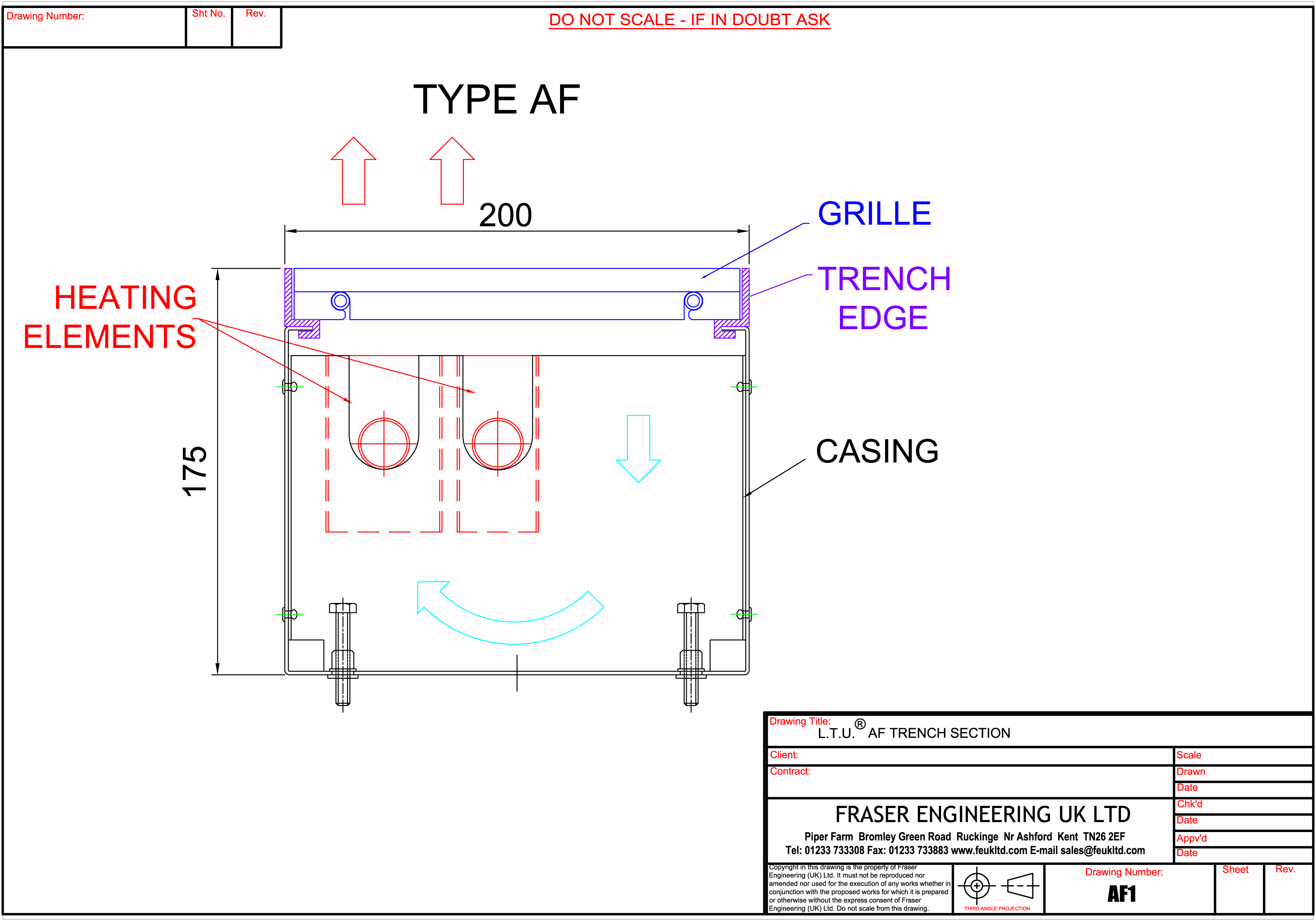

TYPICAL TRENCH SECTIONS

Below are sections of some of our more typical units. As each project is made to order, all dimensions can be altered (within certain parameters). Although not often required, we can supply trench units up to 1000mm wide at almost any depth.

Trench Heating

Trench Heating

Trench Heating

Trench Heating

Trench Heating

Trench Heating

Trench Heating

Trench Heating

Trench Heating

Trench Heating

Trench Heating

Trench Heating

Trench Heating

Trench Heating

Trench Heating

Trench Heating



Trench Radiant



E & O E
