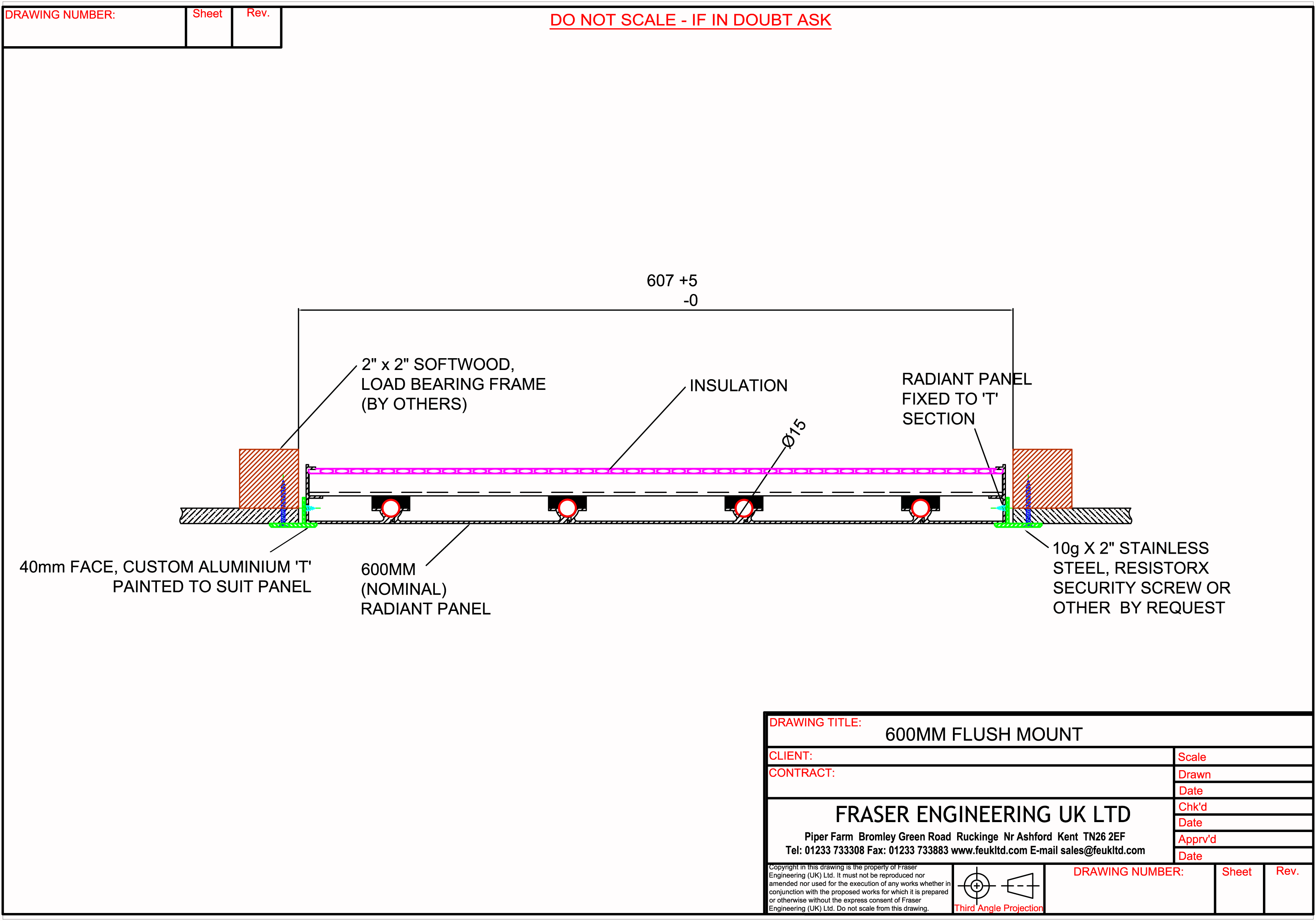

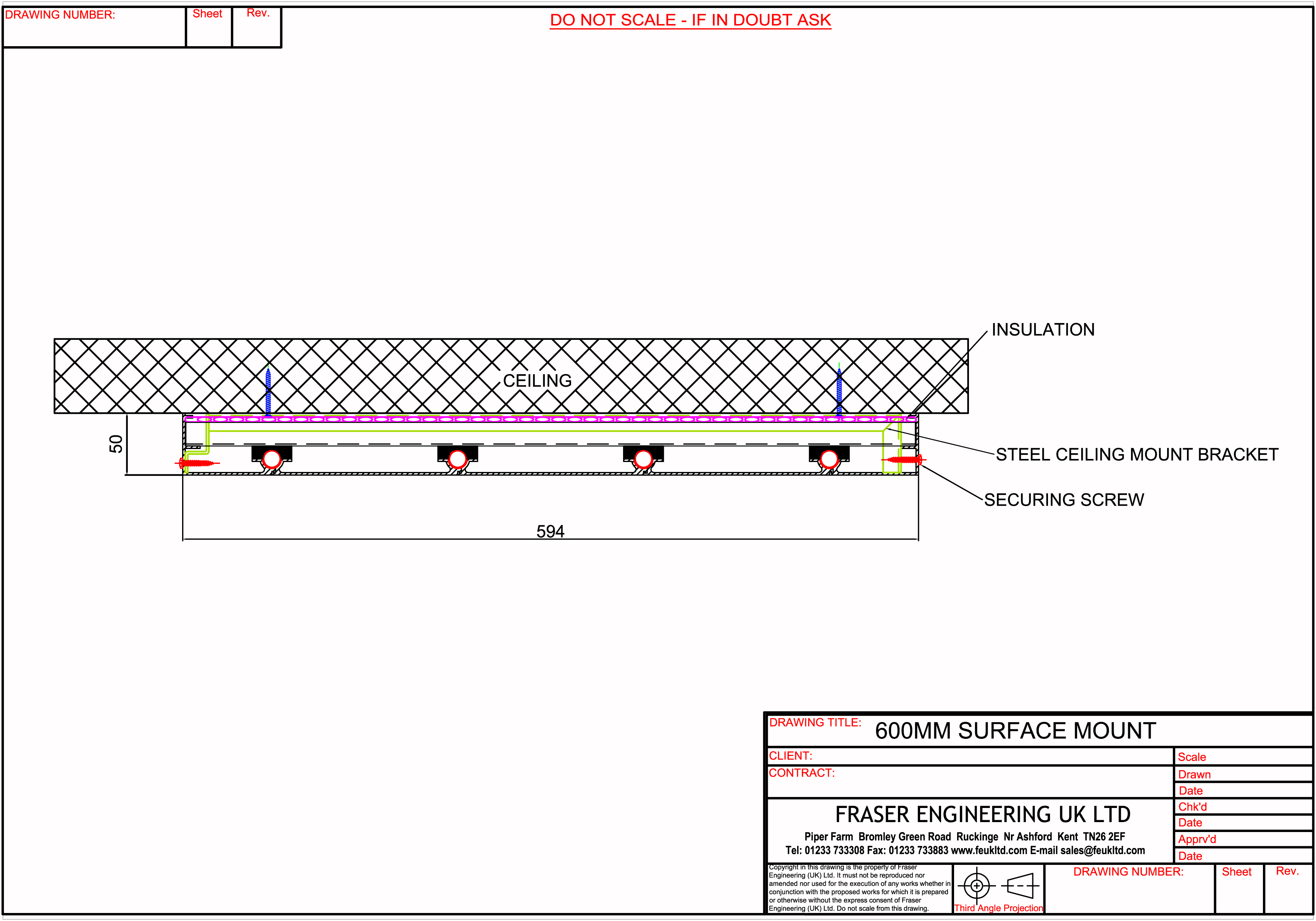

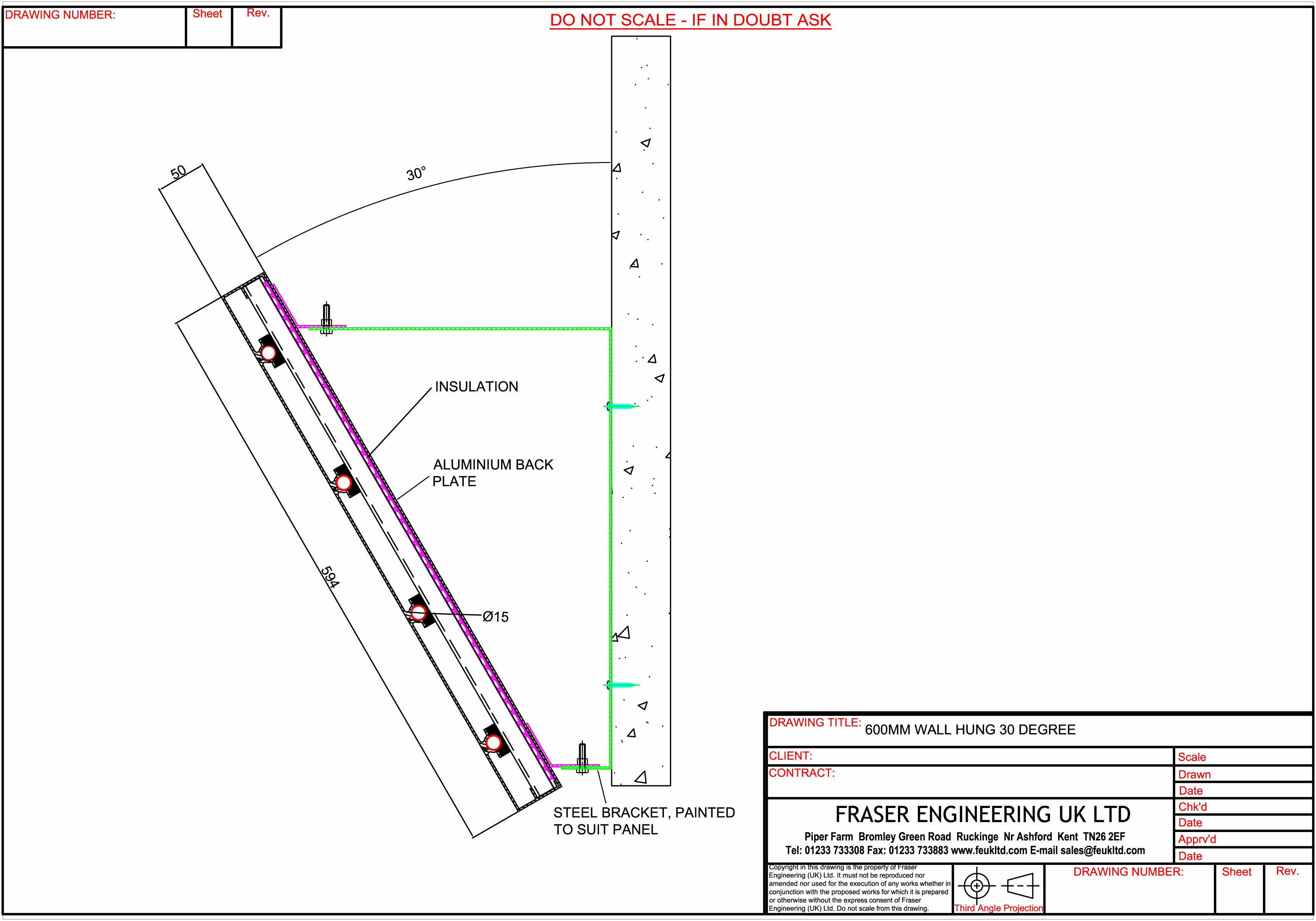

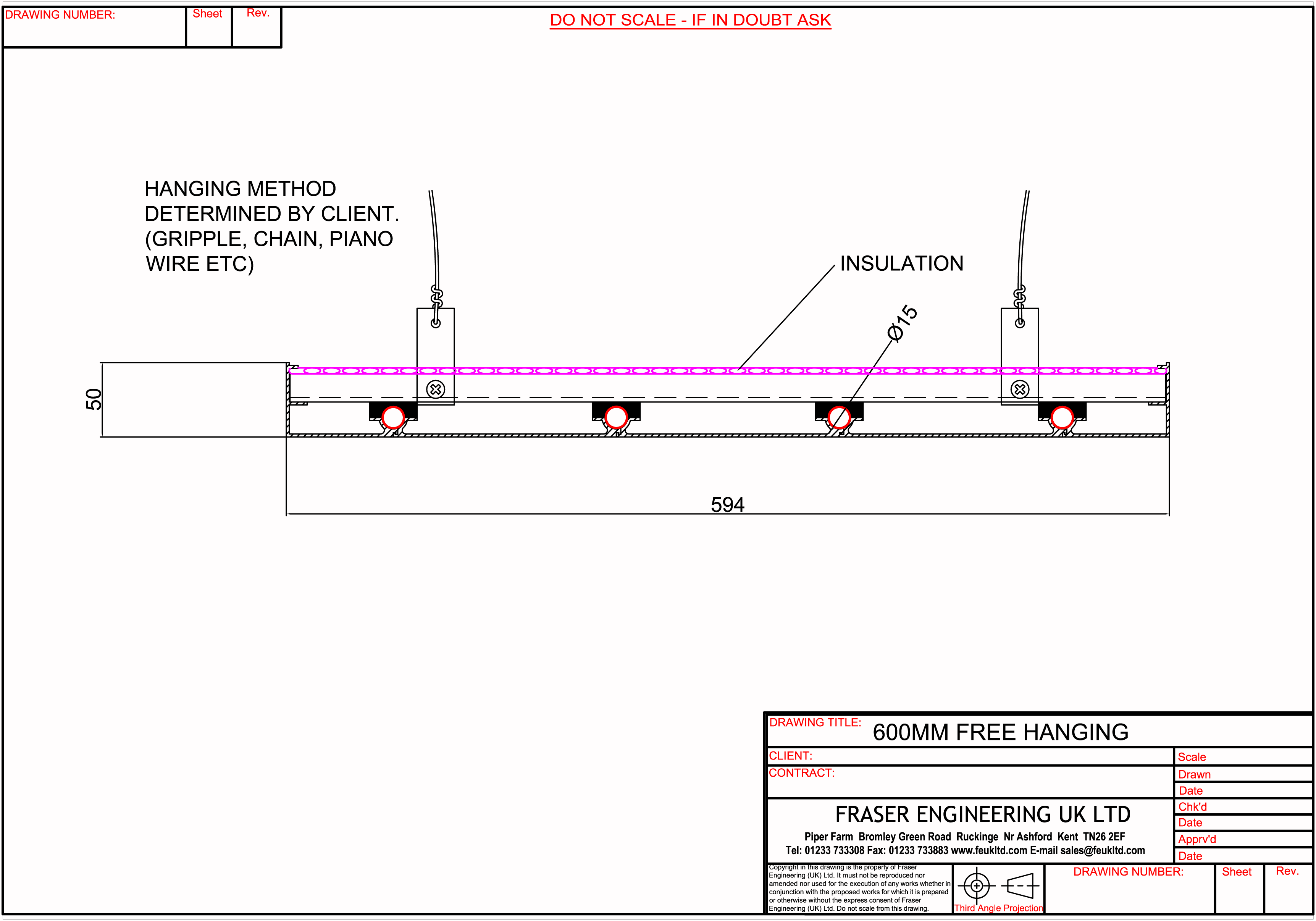

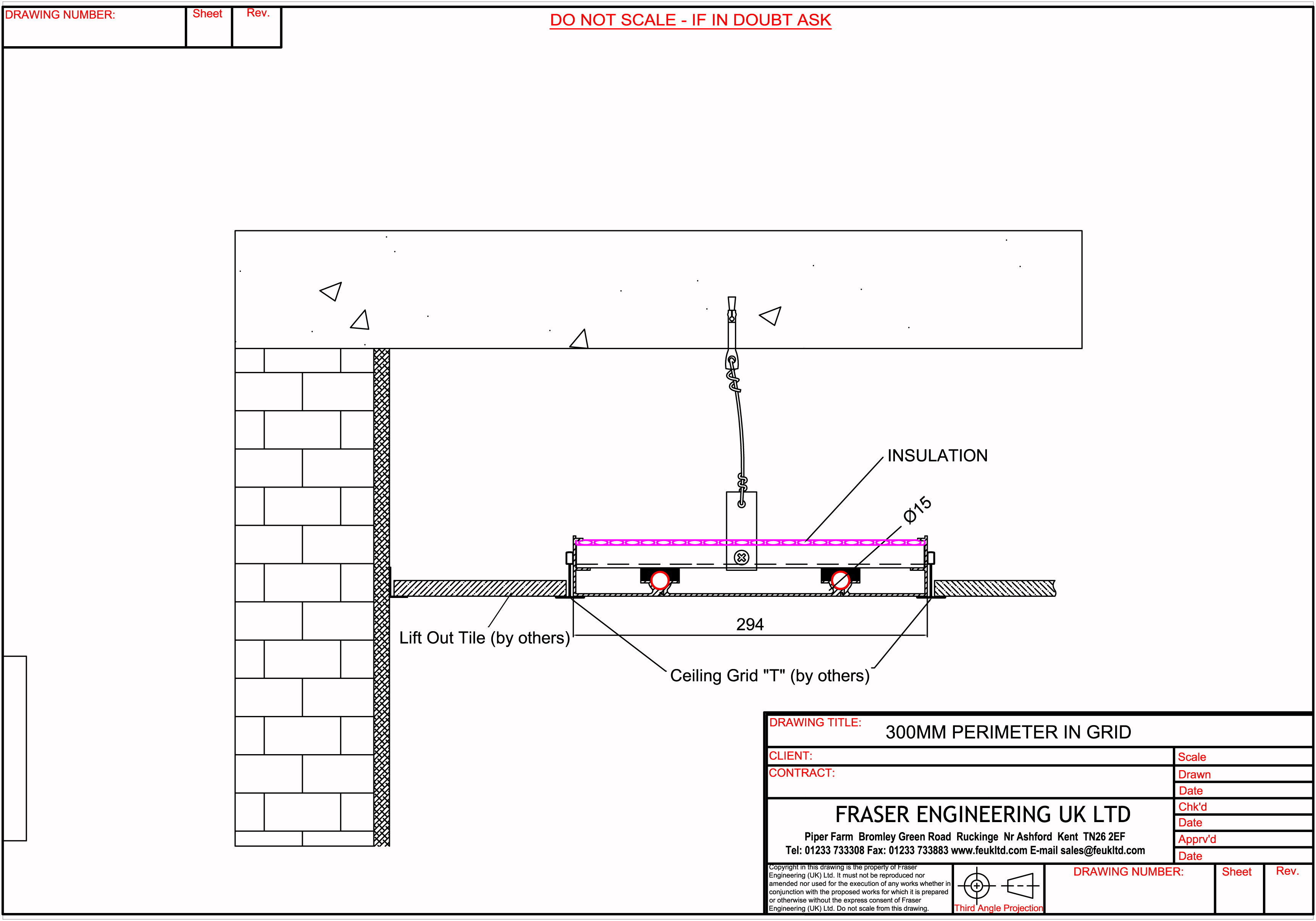

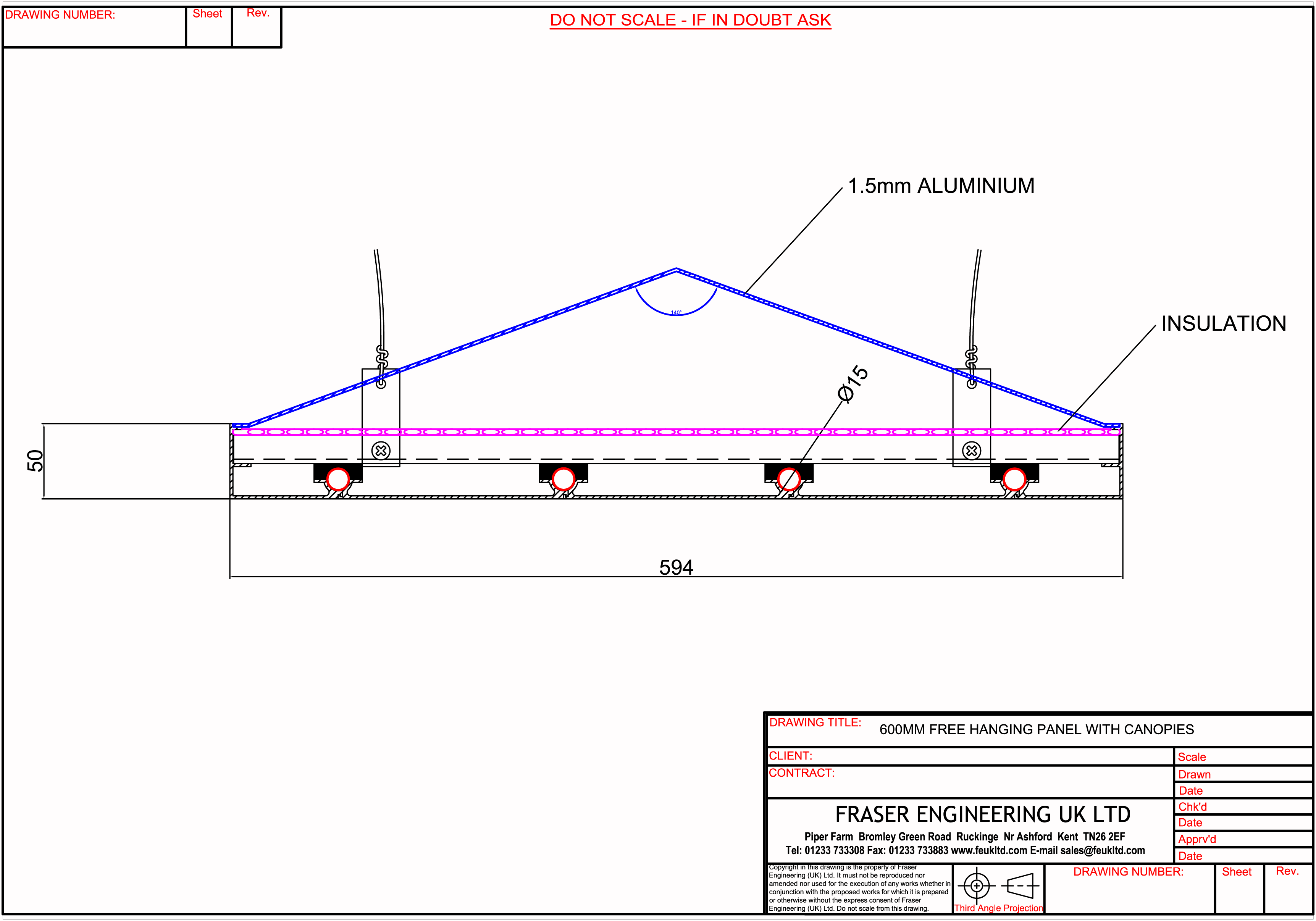

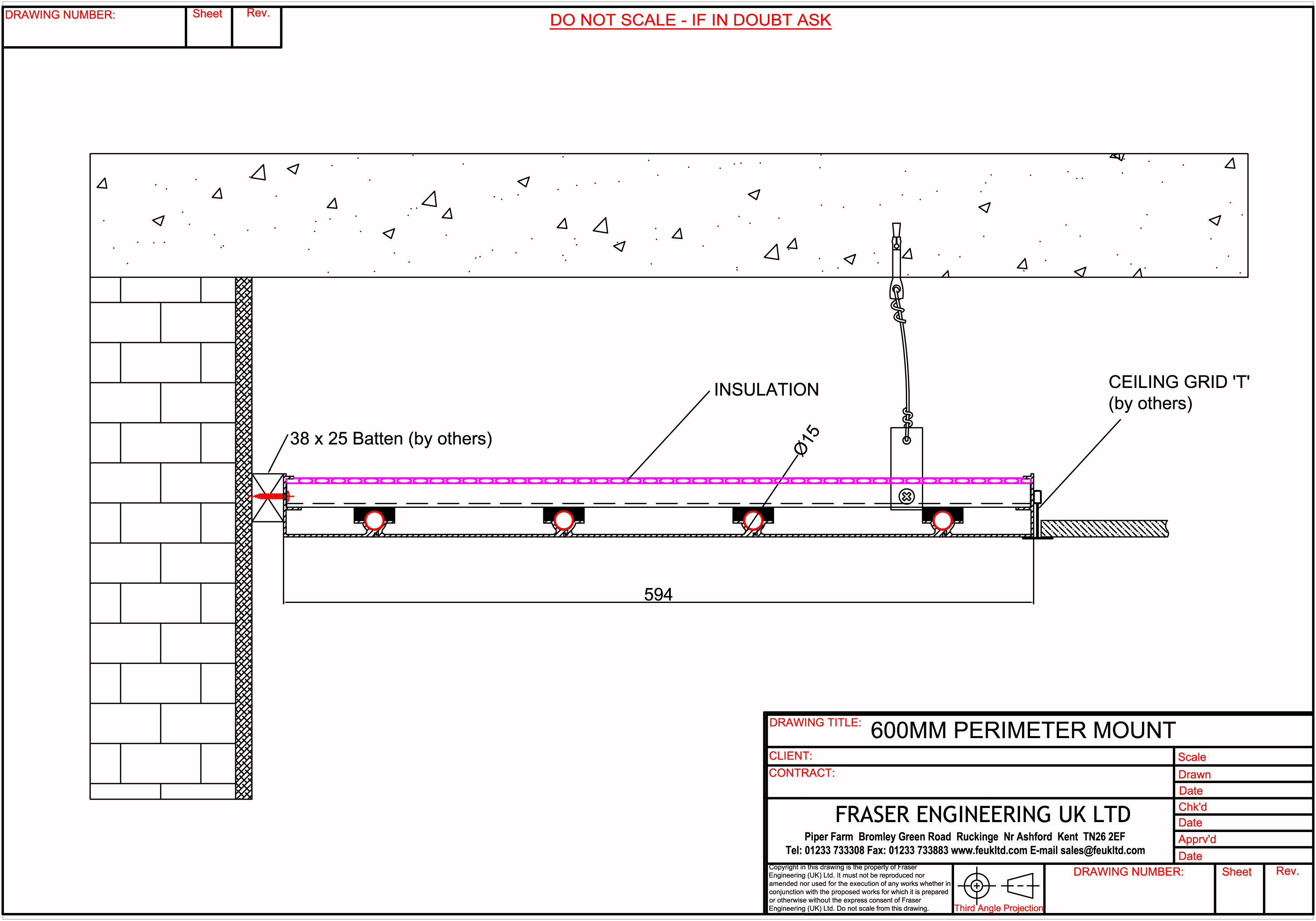

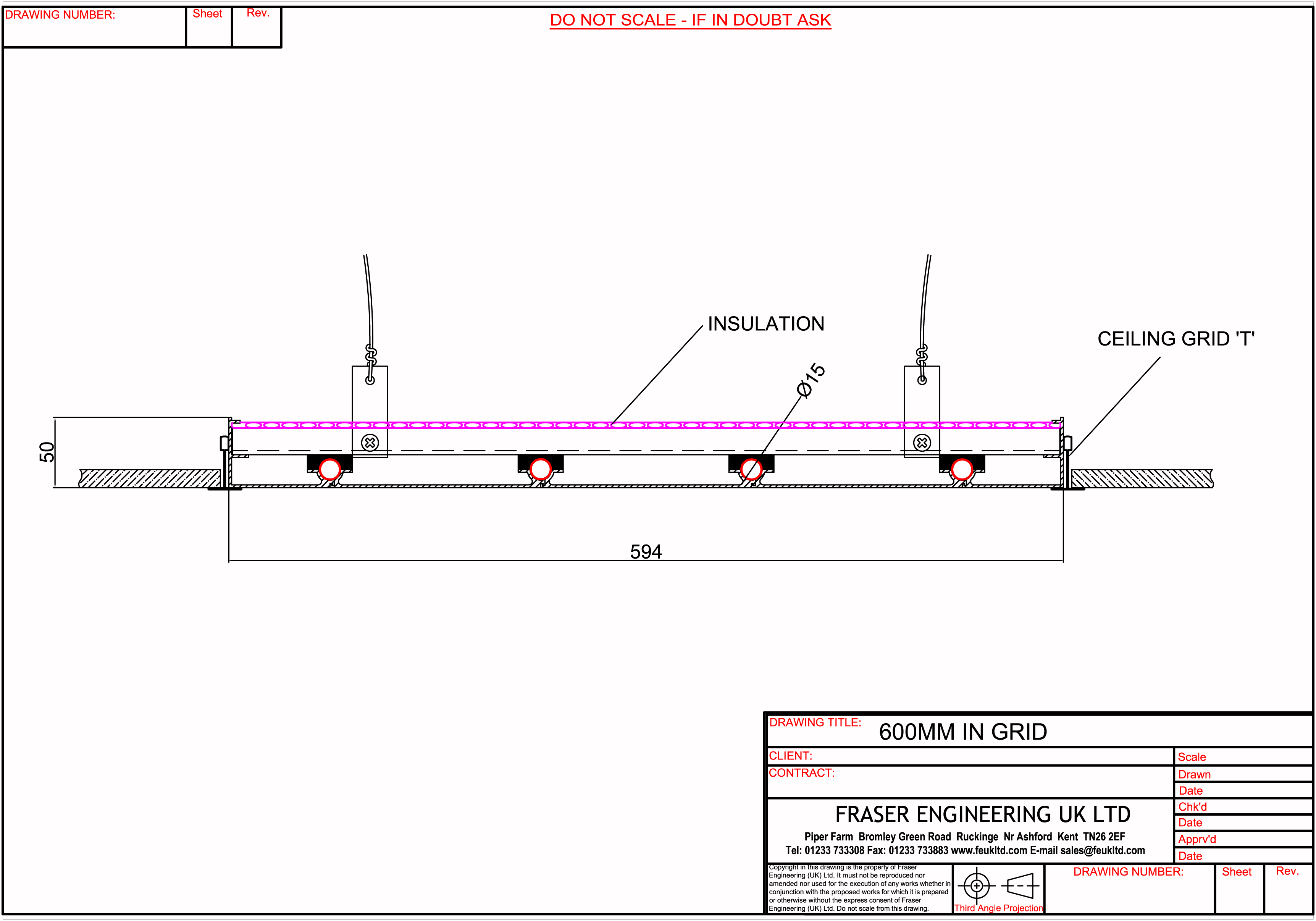

TYPICAL RADIANT PANEL SECTIONS

Below are just a few of the more common methods for installing radiant panels. However, we are quite often called upon to design a completely new installation method that is specific to the application. Please contact our office to discuss exact requirements.

E & O E
